10W RF Power Amplifier Module - 117x40mm Aluminum Housing - 100MHz-7500MHz Series

Write a review
RFPA-10W-ALU

Professional 10W Linear RF Power Amplifier Module housed in a rugged 117x40mm aluminum cavity[cite: 5]. Designed for broadband applications with +28V DC operation, 40dB Gain, and SMA-Female connectors[cite: 3].

Available Frequency Ranges: 100MHz to 7500MHz (Select your specific band option below)[cite: 2, 3].

₹‍650099‍
1 unit (₹650099 per unit)
In stock
Contact the supplier:
Telegram
WhatsApp
Add to wish list Compare
Likaris
Linkaris Company Description Linkaris is a professional manufacturer and supplier, providing high-performance RF Power Amplifiers (RF Power A...
+86199 2640 7396

10W RF Power Amplifier Module - 117x40mm Aluminum Housing - 100MHz-7500MHz Series

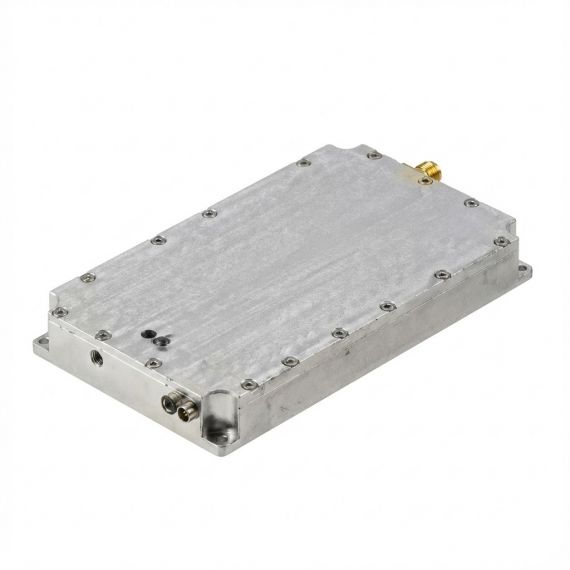

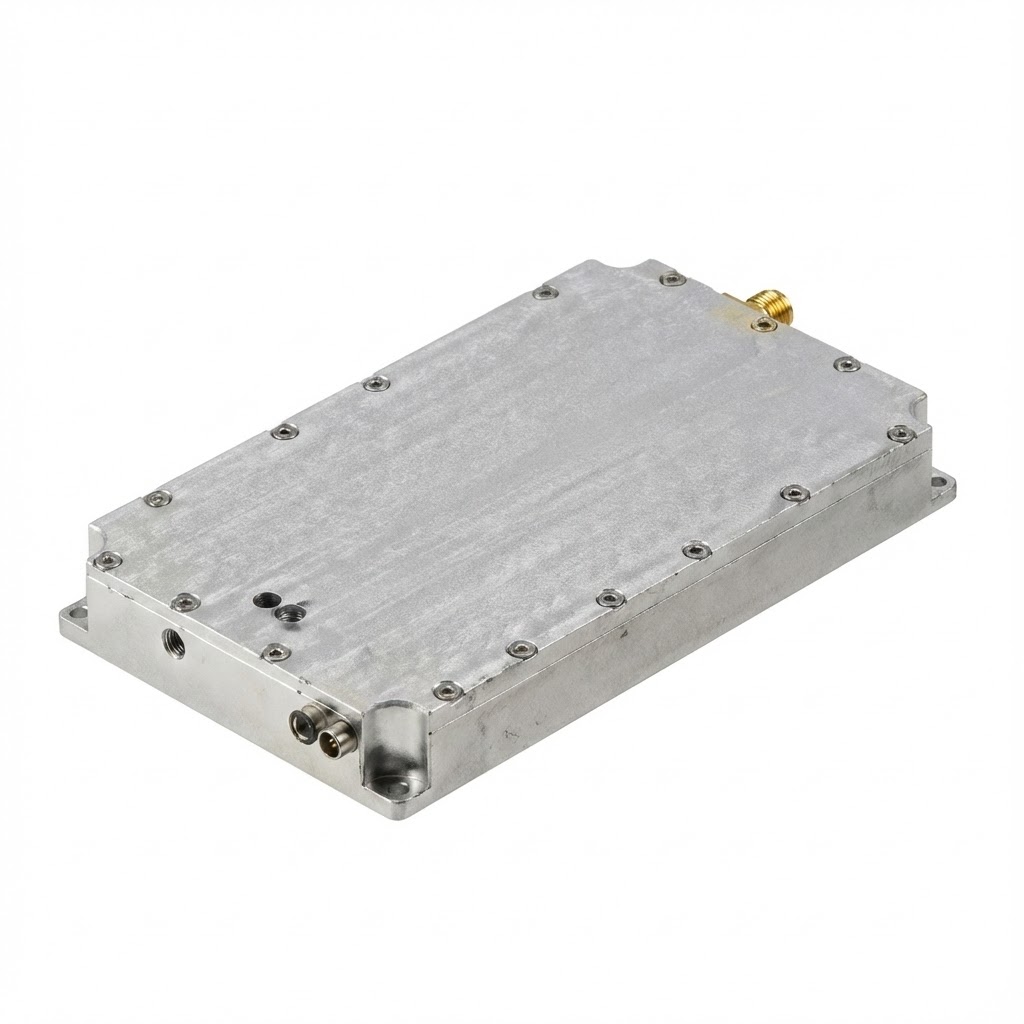

The 10W Aluminum Series is a high-performance linear RF Power Amplifier (PA) module designed for professional broadband applications. Housed in a precision-machined 117x40mm aluminum cavity, this module provides superior thermal dissipation and mechanical robustness.

Engineered with advanced LDMOS and GaN technology, this series delivers a consistent 10W (≥40 dBm) output power with high gain stability across various frequency bands ranging from 100MHz up to 7500MHz.

Important: This is a variable frequency product. Please select your required Frequency Range from the options menu to view the specific bandwidth datasheet (e.g., 100-200MHz, 300-400MHz, etc.).

Key Features

  • High Output Power: Delivers a saturated output power of ≥40 dBm (10W) with a typical gain of 40 ± 1 dB.
  • Precision Enclosure: Features a CNC-milled aluminum alloy cavity with conductive oxidation and sandblasted finish for durability and EMI shielding.
  • Effective Thermal Design: Uses copper blocks for efficient heat conduction to the aluminum casing, ensuring stable operation under load.
  • Intelligent LED Indicators:
    • Green: Power Supply Status (ON/OFF).
    • Blue: RF Output Status (Lights up when output power is normal).
    • Red: Temperature Alarm (Activates >100°C).
  • Wide Voltage Range: Operates on +28V DC (Working range: 24-30V).
  • Standard Interface: Equipped with SMA-Female connectors for easy integration into RF systems.

Technical Specifications (Common Hardware)

Parameter Specification
Output Power 10W (≥40 dBm) CW Output
Gain 40 ± 1 dB (High stability)
Gain Flatness ≤ 3 dB (Peak-to-Peak ripple)
Working Voltage +28V DC (Range: 24V - 30V)
Current Consumption ≤ 1.8A @ +28V DC
Dimensions 117 x 40 x 18 mm
Installation Dimensions 112 x 35 mm (Screw Size: Φ3.20 mm)
Operating Temp -20°C to +55°C
VSWR ≤ 1.5

Mechanical & Environmental Details

  • Housing Material: Aluminum with Conductive Oxidation.
  • Cooling Method: Passive cooling via chassis (requires heatsink attachment for continuous operation).
  • Weight: Approximately 180g.
  • Manufacturing Standard: IPC-A-610 Class 1.

Note on Heat Dissipation

This module is a high-power device. The internal low-level amplification tube generates approximately 50-60W of heat. Ensure the module is mounted to an appropriate heat sink with thermal silicone grease applied. If the Red LED lights up, the internal temperature has exceeded 100°C; check the cooling system immediately.

10W RF Power Amplifier Module - 117x40mm Aluminum Housing - 200-300MHz (10W_200-300M_Module-_Specification.pdf, 697 Kb) [Download]

10W RF Power Amplifier Module - 117x40mm Aluminum Housing - 100-200MHz (10W_100-200M_Module-_Specification.pdf, 697 Kb) [Download]
