10W RF Power Amplifier Module - 117x40mm Aluminum Housing - 100MHz-7500MHz Series
Professional 10W Linear RF Power Amplifier Module housed in a rugged 117x40mm aluminum cavity[cite: 5]. Designed for broadband applications with +28V DC operation, 40dB Gain, and SMA-Female connectors[cite: 3].
Available Frequency Ranges: 100MHz to 7500MHz (Select your specific band option below)[cite: 2, 3].
10W RF Power Amplifier Module - 117x40mm Aluminum Housing - 100MHz-7500MHz Series

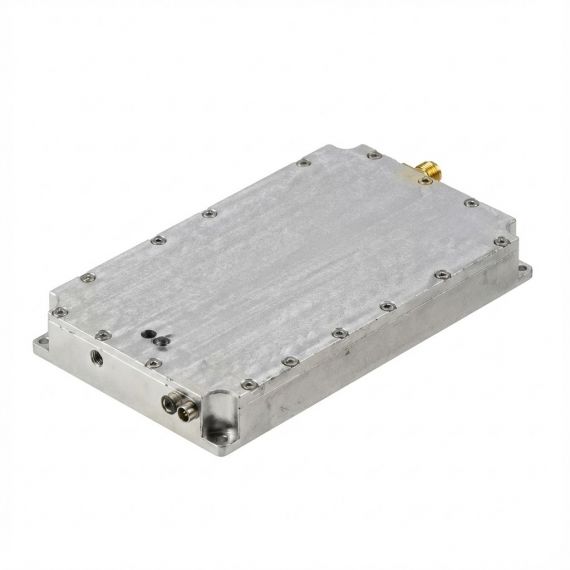

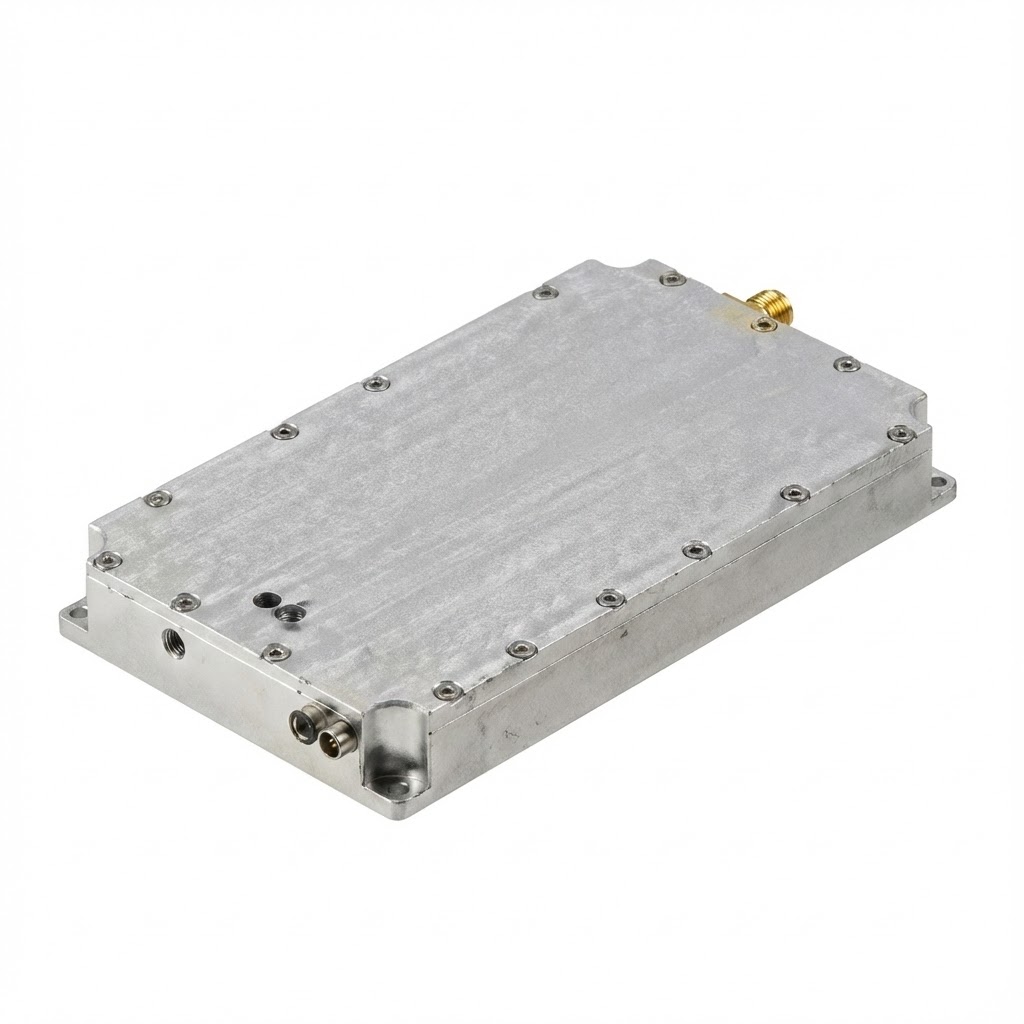

The 10W Aluminum Series is a high-performance linear RF Power Amplifier (PA) module designed for professional broadband applications. Housed in a precision-machined 117x40mm aluminum cavity, this module provides superior thermal dissipation and mechanical robustness.
Engineered with advanced LDMOS and GaN technology, this series delivers a consistent 10W (≥40 dBm) output power with high gain stability across various frequency bands ranging from 100MHz up to 7500MHz.
Important: This is a variable frequency product. Please select your required Frequency Range from the options menu to view the specific bandwidth datasheet (e.g., 100-200MHz, 300-400MHz, etc.).
Key Features
- High Output Power: Delivers a saturated output power of ≥40 dBm (10W) with a typical gain of 40 ± 1 dB.
- Precision Enclosure: Features a CNC-milled aluminum alloy cavity with conductive oxidation and sandblasted finish for durability and EMI shielding.
- Effective Thermal Design: Uses copper blocks for efficient heat conduction to the aluminum casing, ensuring stable operation under load.
- Intelligent LED Indicators:
- Green: Power Supply Status (ON/OFF).
- Blue: RF Output Status (Lights up when output power is normal).
- Red: Temperature Alarm (Activates >100°C).
- Wide Voltage Range: Operates on +28V DC (Working range: 24-30V).
- Standard Interface: Equipped with SMA-Female connectors for easy integration into RF systems.
Technical Specifications (Common Hardware)
| Parameter | Specification |
| Output Power | 10W (≥40 dBm) CW Output |
| Gain | 40 ± 1 dB (High stability) |
| Gain Flatness | ≤ 3 dB (Peak-to-Peak ripple) |
| Working Voltage | +28V DC (Range: 24V - 30V) |
| Current Consumption | ≤ 1.8A @ +28V DC |
| Dimensions | 117 x 40 x 18 mm |
| Installation Dimensions | 112 x 35 mm (Screw Size: Φ3.20 mm) |
| Operating Temp | -20°C to +55°C |
| VSWR | ≤ 1.5 |
Mechanical & Environmental Details
- Housing Material: Aluminum with Conductive Oxidation.
- Cooling Method: Passive cooling via chassis (requires heatsink attachment for continuous operation).
- Weight: Approximately 180g.
- Manufacturing Standard: IPC-A-610 Class 1.
Note on Heat Dissipation
This module is a high-power device. The internal low-level amplification tube generates approximately 50-60W of heat. Ensure the module is mounted to an appropriate heat sink with thermal silicone grease applied. If the Red LED lights up, the internal temperature has exceeded 100°C; check the cooling system immediately.
